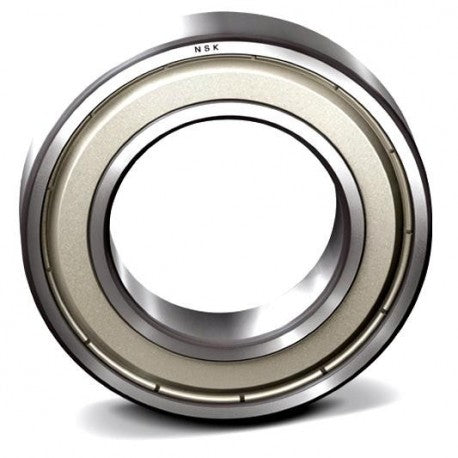

6024ZZ NSK Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 80000 N
precision rating : ABEC 1 (ISO Class Normal)
Bore Diameter : 120 mm
outside diameter : 180 mm
overall width : 28 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Double Shielded
outer ring width : 28 mm
row type & fill slot : Single Row Non-Fill Slot
fillet radius : 2 mm
internal clearance : C0
maximum rpm : 4300 RPM
operating temperature range : -10 to +110 °C
Series : 60
dynamic load capacity : 88000 N
