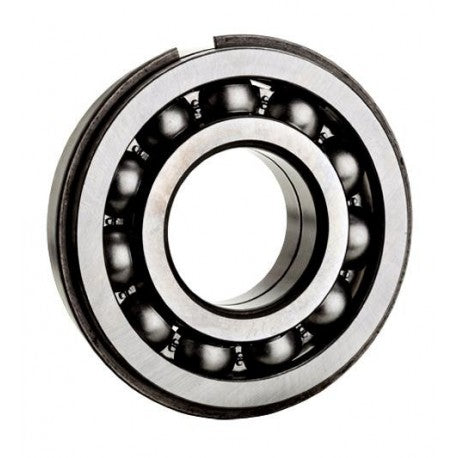

6204NRC3 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
finish/coating : Uncoated
outside diameter : 47 mm
Bore Diameter : 20 mm
bearing material : High Carbon Chrome Steel
overall width : 14 mm
cage material : Steel
bore type : Round
inner ring width : 14 mm
closure type : Open
outer ring width : 14 mm
row type & fill slot : Single Row Non-Fill Slot
maximum rpm (grease) : 16000 rpm
maximum rpm (oil) : 18000 rpm
snap ring included : With Snap Ring
internal clearance : C3
fillet radius : 1 mm
operating temperature range : -40 to 120 ºC
maximum rpm : 18000 RPM
