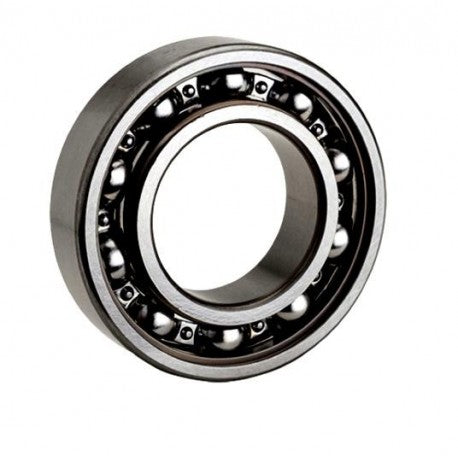

6209HT200 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
inner ring width : 19 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 19 mm
snap ring included : Without Snap Ring
maximum rpm (grease) : 7800 rpm
internal clearance : CN
maximum rpm (oil) : 9200 rpm
Bore Diameter : 45 mm
precision rating : Class 0
outside diameter : 85 mm
finish/coating : Uncoated
overall width : 19 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Open
operating temperature range : -40 to 200 ºC
fillet radius : 1.1 mm
