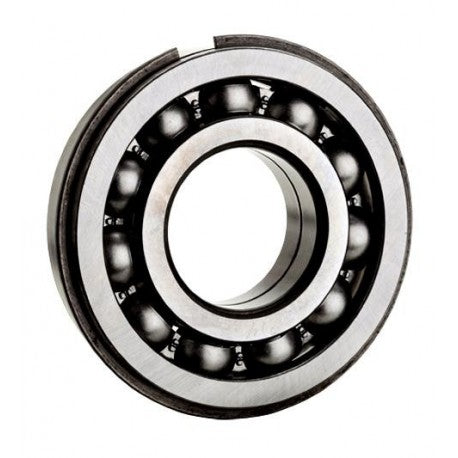

6216NRC3 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
inner ring width : 26 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 26 mm
snap ring included : With Snap Ring
maximum rpm (grease) : 4500 rpm
internal clearance : C3
maximum rpm (oil) : 5300 rpm
Bore Diameter : 80 mm
precision rating : ISO Class 0
outside diameter : 140 mm
finish/coating : Uncoated
overall width : 26 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Open
operating temperature range : -40 to 120 ºC
fillet radius : 2 mm
