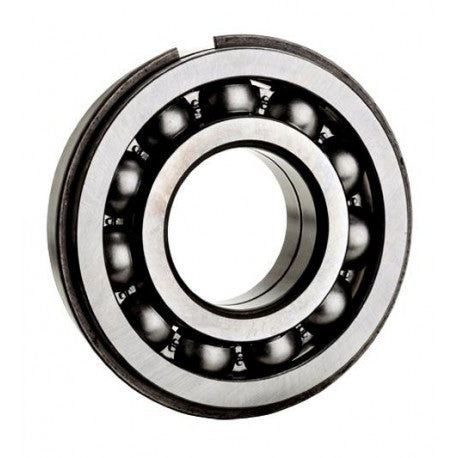

6217NR NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 85 mm
precision rating : ISO Class 0
outside diameter : 150 mm
finish/coating : Uncoated
overall width : 28 mm
bore type : Round
bearing material : High Carbon Chrome Steel
cage material : Steel
closure type : Open
inner ring width : 28 mm
outer ring width : 28 mm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : With Snap Ring
maximum rpm (grease) : 4200 rpm
internal clearance : CN
maximum rpm (oil) : 5000 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 2 mm
