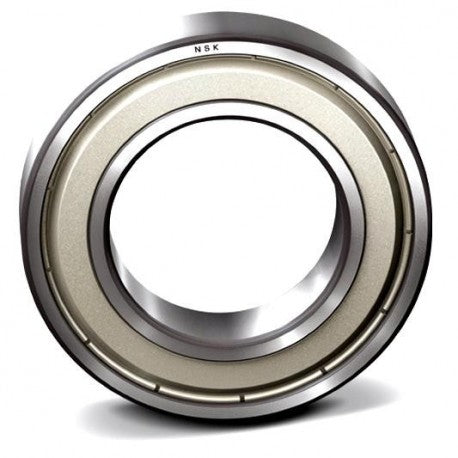

6219ZZ NSK Radial/Deep Groove Ball Bearings Features & Specifications:
outer ring width : 32 mm
row type & fill slot : Single Row Non-Fill Slot
fillet radius : 2.1 mm
internal clearance : C0
maximum rpm : 4500 RPM
operating temperature range : -10 to +110 °C
Series : 62
Bore Diameter : 95 mm
static load capacity : 82000 N
outside diameter : 170 mm
precision rating : ABEC 1 (ISO Class Normal)
overall width : 32 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Double Shielded
dynamic load capacity : 109000 N
