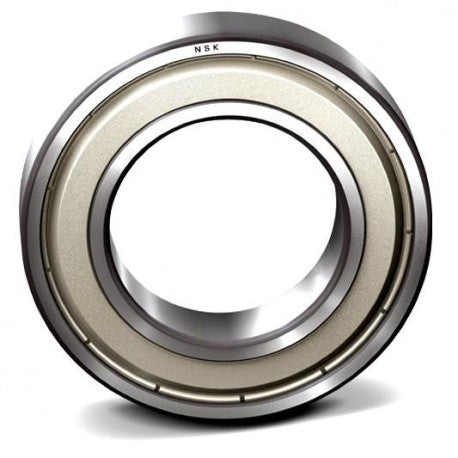

6220ZZ NSK Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 93000 N
outside diameter : 180 mm
Bore Diameter : 100 mm
precision rating : ABEC 1 (ISO Class Normal)
overall width : 34 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Double Shielded
outer ring width : 34 mm
row type & fill slot : Single Row Non-Fill Slot
fillet radius : 2.1 mm
maximum rpm : 4300 RPM
internal clearance : C0
operating temperature range : -10 to +110 °C
Series : 62
dynamic load capacity : 122000 N
