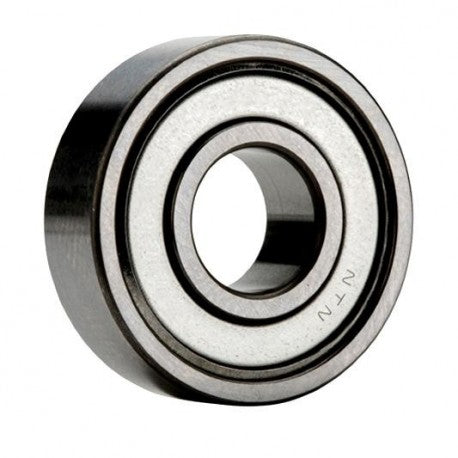

6226ZZC3/EM NTN Radial/Deep Groove Ball Bearings Features & Specifications:
precision rating : ISO Class 0
finish/coating : Uncoated
Bore Diameter : 130 mm
outside diameter : 230 mm
overall width : 40 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Double Shielded
inner ring width : 40 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 40 mm
snap ring included : Without Snap Ring
maximum rpm (grease) : 2700 rpm
internal clearance : C3
fillet radius : 3 mm
operating temperature range : -40 to 120 ºC
maximum rpm : 2700 RPM
