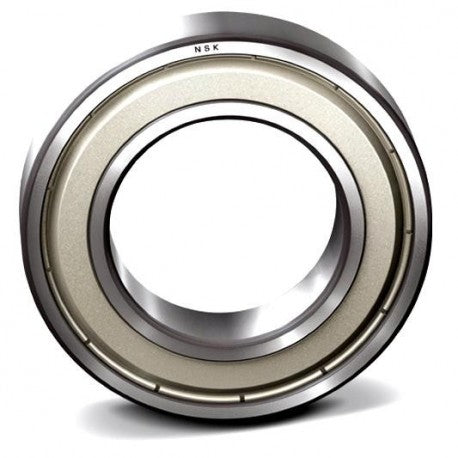

625ZZC3 NSK Radial/Deep Groove Ball Bearings Features & Specifications:
dynamic load capacity : 1730 N
static load capacity : 151 lb, 670 N
Bore Diameter : 5 mm
outside diameter : 16 mm
overall width : 5 mm
precision rating : ABEC 1 (ISO Class Normal)
bore type : Round
finish/coating : Uncoated
closure type : Double Shielded
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 5 mm
snap ring included : Without Snap Ring
fillet radius : 0.3 mm
internal clearance : C3
maximum rpm : 43000 RPM
operating temperature range : -10 to +110 °C
Series : 62
