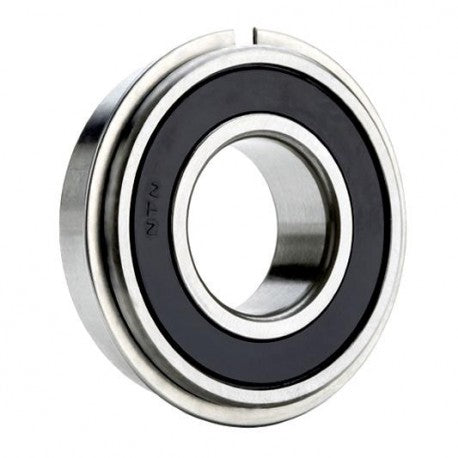

6304LLBNR NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 20 mm
static load capacity : 7900 N
outside diameter : 52 mm
precision rating : ISO Class 0
overall width : 15 mm
bore type : Round
finish/coating : Uncoated
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
cage material : Steel
inner ring width : 15 mm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : With Snap Ring
outer ring width : 15 mm
internal clearance : CN
maximum rpm (grease) : 14000 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 1.1 mm
