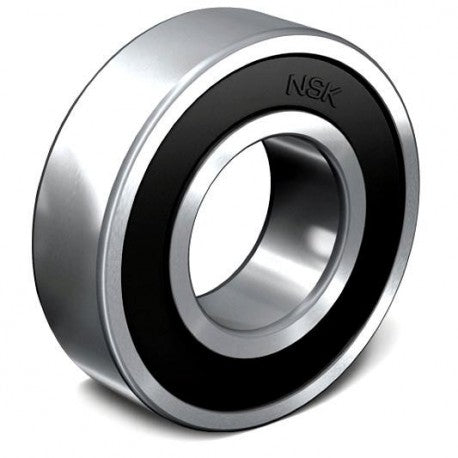

6304VVNR NSK Radial/Deep Groove Ball Bearings Features & Specifications:
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 15 mm
snap ring included : With Snap Ring
fillet radius : 1.1 mm
internal clearance : C3
maximum rpm : 14000 RPM
Bore Diameter : 20 mm
dynamic load capacity : 15900 N
outside diameter : 52 mm
static load capacity : 7900 N
overall width : 15 mm
precision rating : ABEC 1 (ISO Class Normal)
bore type : Round
finish/coating : Uncoated
closure type : Double Sealed
operating temperature range : -10 to +110 °C
Series : 63
