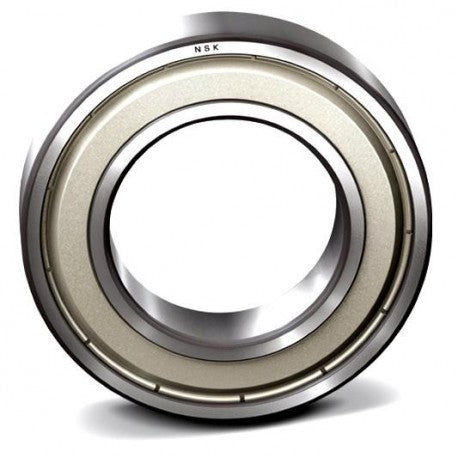

6304ZC3 NSK Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 7900 N
precision rating : ABEC 1 (ISO Class Normal)
Bore Diameter : 20 mm
outside diameter : 52 mm
overall width : 15 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Single Shield
outer ring width : 15 mm
row type & fill slot : Single Row Non-Fill Slot
fillet radius : 1.1 mm
internal clearance : C3
maximum rpm : 17000 RPM
operating temperature range : Maximum of +250 °F
Series : 63
dynamic load capacity : 15900 N
