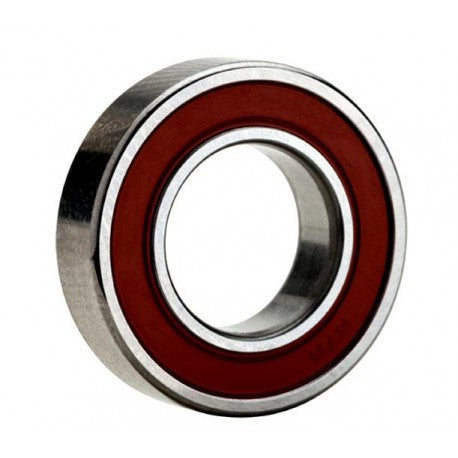

6306BLLU/32C4 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 19 mm
snap ring included : Without Snap Ring
outer ring width : 19 mm
internal clearance : C4
maximum rpm (grease) : 6600 rpm
Bore Diameter : 30 mm
static load capacity : 15000 N
outside diameter : 72 mm
precision rating : ISO Class 0
overall width : 19 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
operating temperature range : -40 to 120 ºC
fillet radius : 1.1 mm
