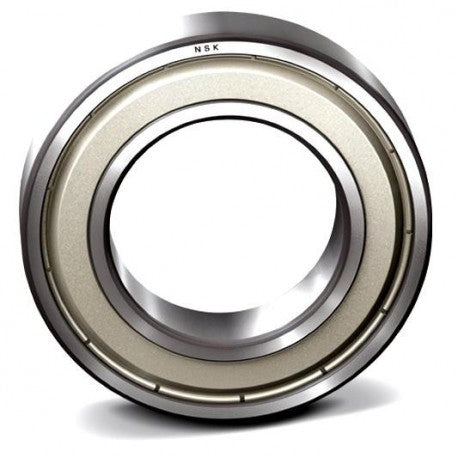

6306ZZNR NSK Radial/Deep Groove Ball Bearings Features & Specifications:
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 19 mm
snap ring included : With Snap Ring
fillet radius : 1.1 mm
internal clearance : C3
maximum rpm : 12000 RPM
Bore Diameter : 30 mm
dynamic load capacity : 26700 N
outside diameter : 72 mm
static load capacity : 15000 N
overall width : 19 mm
precision rating : Not Rated
bore type : Round
finish/coating : Uncoated
closure type : Double Shielded
operating temperature range : -10 to +110 °C
Series : 63
