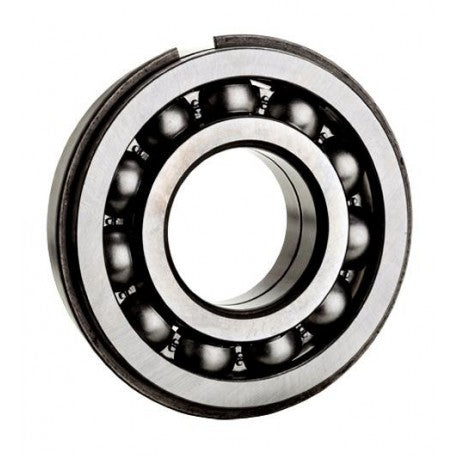

6308NRC3 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 40 mm
finish/coating : Uncoated
outside diameter : 90 mm
bearing material : High Carbon Chrome Steel
overall width : 23 mm
bore type : Round
cage material : Steel
inner ring width : 23 mm
closure type : Open
outer ring width : 23 mm
maximum rpm (grease) : 7800 rpm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : With Snap Ring
maximum rpm (oil) : 9200 rpm
internal clearance : C3
fillet radius : 1.5 mm
operating temperature range : -40 to 120 ºC
maximum rpm : 9200 RPM
