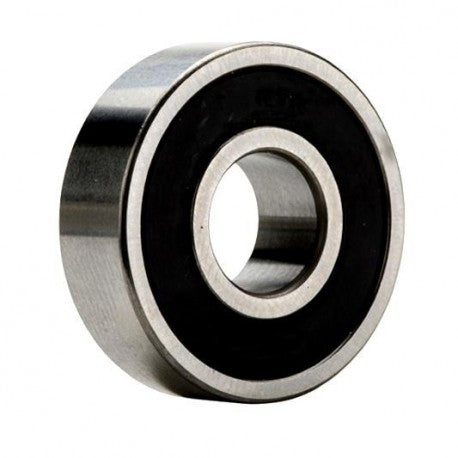

6314T2LLBC3P5 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 68000 N
outside diameter : 150 mm
Bore Diameter : 70 mm
precision rating : ISO Class 5
overall width : 35 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
cage material : Nylon
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 35 mm
outer ring width : 35 mm
snap ring included : Without Snap Ring
internal clearance : C3
maximum rpm (grease) : 4600 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 2.1 mm
