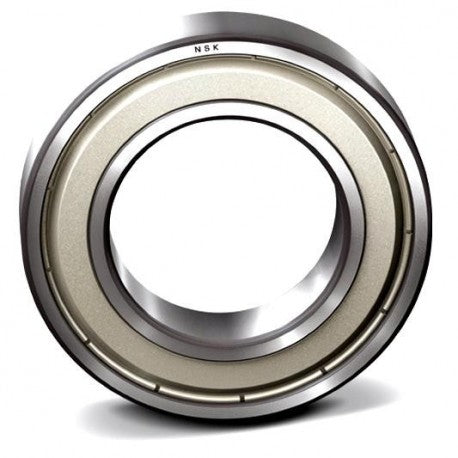

6314ZC3 NSK Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 68000 N
outside diameter : 150 mm
Bore Diameter : 70 mm
precision rating : ABEC 1 (ISO Class Normal)
overall width : 35 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Single Shield
outer ring width : 35 mm
row type & fill slot : Single Row Non-Fill Slot
fillet radius : 2.1 mm
maximum rpm : 5300 RPM
internal clearance : C3
operating temperature range : Maximum of +250 °F
Series : 63
dynamic load capacity : 104000 N
