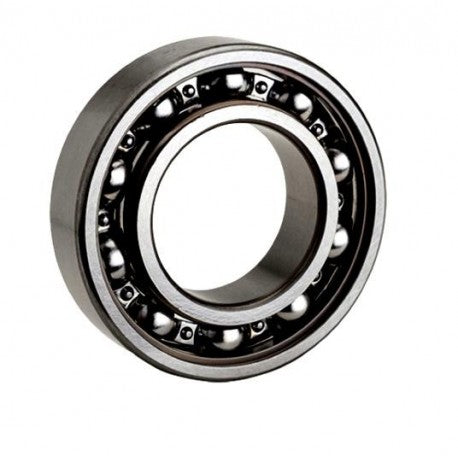

6316C4 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
finish/coating : Uncoated
bearing material : High Carbon Chrome Steel
Bore Diameter : 80 mm
outside diameter : 170 mm
overall width : 39 mm
cage material : Steel
bore type : Round
inner ring width : 39 mm
closure type : Open
outer ring width : 39 mm
row type & fill slot : Single Row Non-Fill Slot
maximum rpm (grease) : 4000 rpm
snap ring included : Without Snap Ring
maximum rpm (oil) : 4700 rpm
internal clearance : C4
fillet radius : 2.1 mm
operating temperature range : -40 to 120 ºC
maximum rpm : 4700 RPM
