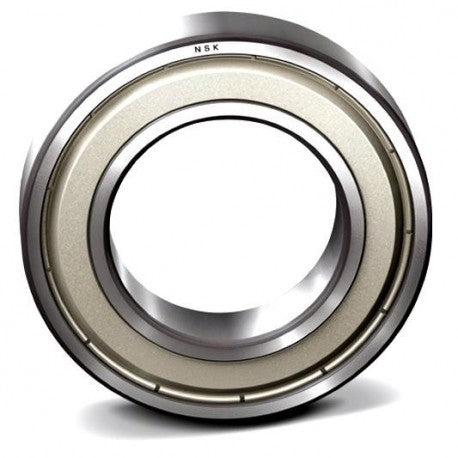

6318Z NSK Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 107000 N
precision rating : ABEC 1 (ISO Class Normal)
Bore Diameter : 90 mm
outside diameter : 190 mm
overall width : 43 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Single Shield
outer ring width : 43 mm
row type & fill slot : Single Row Non-Fill Slot
fillet radius : 3 mm
internal clearance : C3
maximum rpm : 4300 RPM
operating temperature range : Maximum of +250 °F
Series : 63
dynamic load capacity : 143000 N
