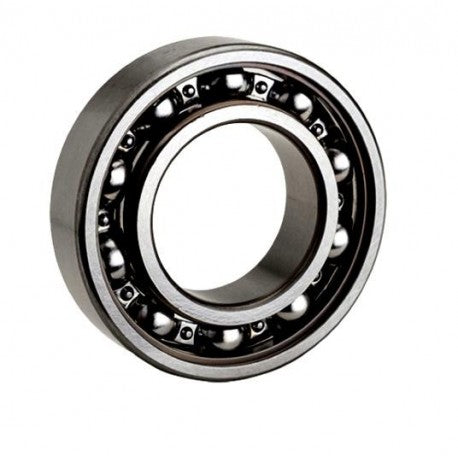

63/22C4 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
finish/coating : Uncoated
outside diameter : 56 mm
Bore Diameter : 22 mm
bearing material : High Carbon Chrome Steel
overall width : 16 mm
cage material : Steel
bore type : Round
inner ring width : 16 mm
closure type : Open
outer ring width : 16 mm
row type & fill slot : Single Row Non-Fill Slot
maximum rpm (grease) : 13000 rpm
maximum rpm (oil) : 15000 rpm
snap ring included : Without Snap Ring
internal clearance : C4
fillet radius : 1.1 mm
operating temperature range : -40 to 120 ºC
maximum rpm : 15000 RPM
