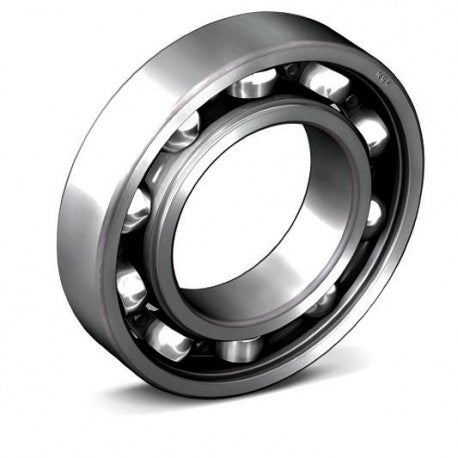

6324M NSK Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 185000 N
outside diameter : 260 mm
Bore Diameter : 120 mm
precision rating : ABEC 1 (ISO Class Normal)
overall width : 55 mm
finish/coating : Uncoated
bore type : Round
cage material : Steel
closure type : Open
outer ring width : 55 mm
row type & fill slot : Single Row Non-Fill Slot
fillet radius : 3 mm
maximum rpm : 2800 RPM
internal clearance : C0
operating temperature range : Maximum of +250 °F
Series : 63
dynamic load capacity : 207000 N
