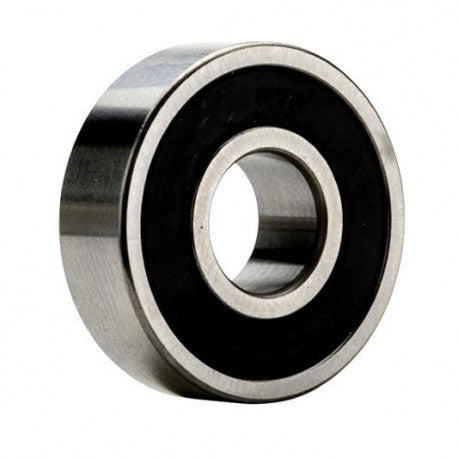

63305LLBC3/EM NTN Radial/Deep Groove Ball Bearings Features & Specifications:
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 25.40 mm
snap ring included : Without Snap Ring
outer ring width : 25.40 mm
internal clearance : C3
maximum rpm (grease) : 12000 rpm
Bore Diameter : 25 mm
static load capacity : 10900 N
outside diameter : 62 mm
precision rating : ISO Class 0
overall width : 25.4 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
operating temperature range : -40 to 120 ºC
fillet radius : 1.1 mm
