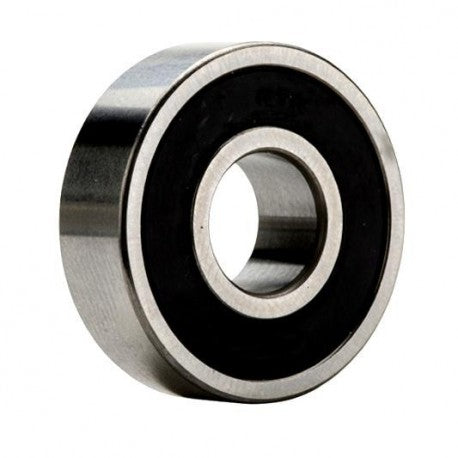

63306LLBC3/EM NTN Radial/Deep Groove Ball Bearings Features & Specifications:
inner ring width : 30.20 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 30.20 mm
snap ring included : Without Snap Ring
maximum rpm (grease) : 10000 rpm
internal clearance : C3
fillet radius : 1.1 mm
Bore Diameter : 30 mm
precision rating : ISO Class 0
outside diameter : 72 mm
finish/coating : Uncoated
overall width : 30.2 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Double Sealed
operating temperature range : -40 to 120 ºC
Series : 633
