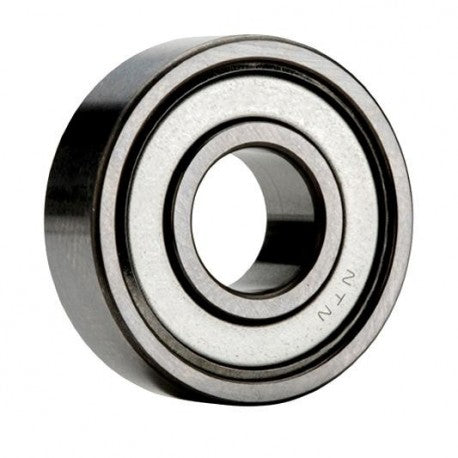

63316ZZ NTN Radial/Deep Groove Ball Bearings Features & Specifications:
precision rating : ISO Class 0
outside diameter : 170 mm
Bore Diameter : 80 mm
finish/coating : Uncoated
overall width : 68.3 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Double Shielded
inner ring width : 68.30 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 68.30 mm
maximum rpm (grease) : 4000 rpm
snap ring included : Without Snap Ring
internal clearance : CN
fillet radius : 2.1 mm
operating temperature range : -40 to 120 ºC
Series : 633
