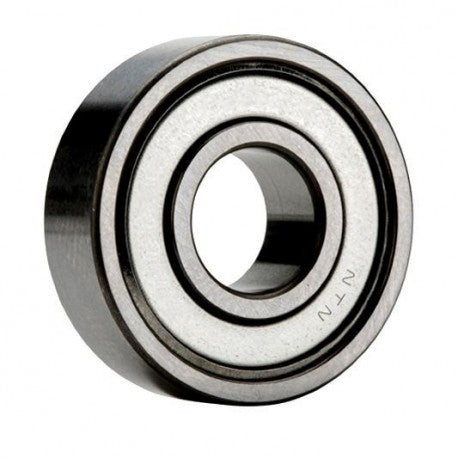

63320ZZC3/EM NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 100 mm
precision rating : ISO Class 0
outside diameter : 215 mm
finish/coating : Uncoated
overall width : 82.6 mm
bore type : Round
bearing material : High Carbon Chrome Steel
cage material : Steel
closure type : Double Shielded
inner ring width : 82.60 mm
outer ring width : 82.60 mm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
maximum rpm (grease) : 8800 rpm
internal clearance : C3
fillet radius : 3 mm
operating temperature range : -40 to 120 ºC
Series : 633
