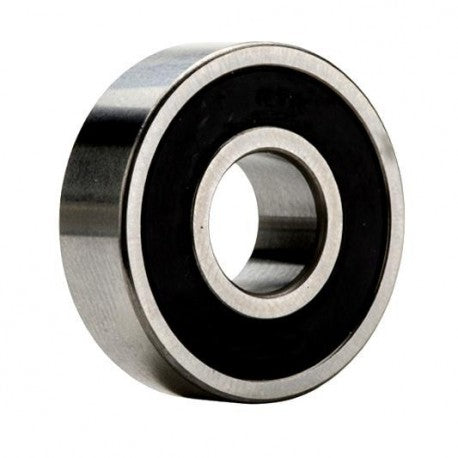

6817LLB NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 19000 N
precision rating : ISO Class 0
Bore Diameter : 85 mm
outside diameter : 110 mm
overall width : 13 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 13 mm
snap ring included : Without Snap Ring
outer ring width : 13 mm
internal clearance : CN
maximum rpm (grease) : 5700 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 1 mm
