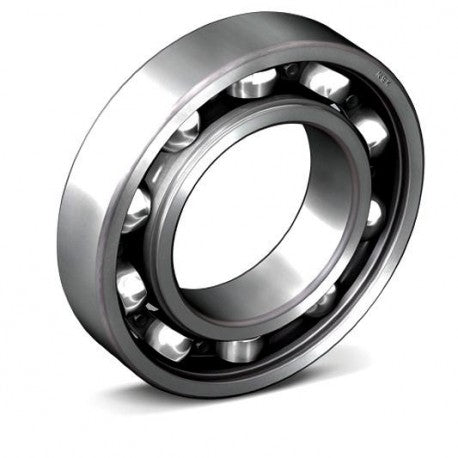

6844M NSK Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 220 mm
static load capacity : 107000 N
outside diameter : 270 mm
precision rating : ABEC 1 (ISO Class Normal)
overall width : 24 mm
bore type : Round
finish/coating : Uncoated
cage material : Brass
closure type : Open
outer ring width : 24 mm
fillet radius : 1.5 mm
row type & fill slot : Single Row Non-Fill Slot
internal clearance : C0
maximum rpm : 2400 RPM
operating temperature range : Maximum of +250 °F
Series : 68
dynamic load capacity : 76500 N
