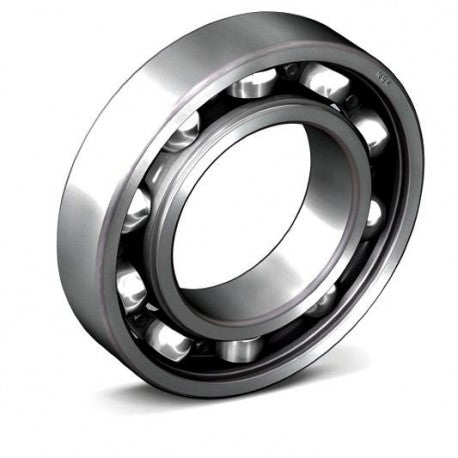

6856M NSK Radial/Deep Groove Ball Bearings Features & Specifications:
dynamic load capacity : 133000 N
static load capacity : 191000 N
Bore Diameter : 280 mm
outside diameter : 350 mm
overall width : 33 mm
precision rating : ABEC 1 (ISO Class Normal)
bore type : Round
finish/coating : Uncoated
closure type : Open
cage material : Brass
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 33 mm
snap ring included : With Snap Ring
fillet radius : 2 mm
internal clearance : C0
maximum rpm : 1700 RPM
operating temperature range : Maximum of +250 °F
Series : 68
