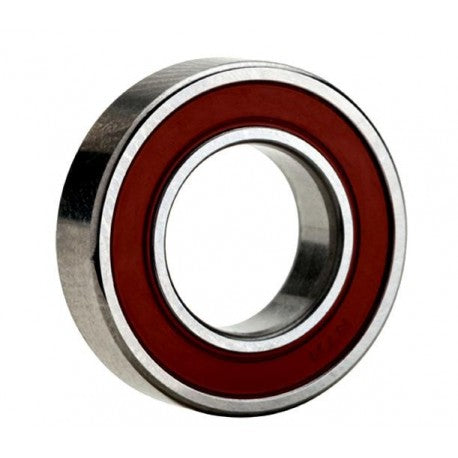

6903LLU NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 2580 N
outside diameter : 30 mm
Bore Diameter : 17 mm
precision rating : ISO Class 0
overall width : 7 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 7 mm
outer ring width : 7 mm
snap ring included : Without Snap Ring
internal clearance : CN
maximum rpm (grease) : 14000 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 0.3 mm
