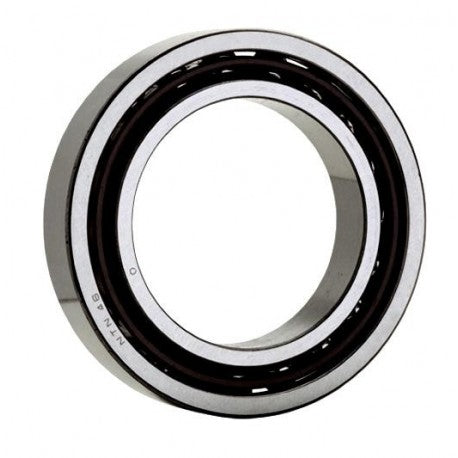

7005L1 NTN Angular Contact Bearings bore Features & Specifications:
Bore Diameter : 25 mm
Radial static load capacity : 6850 N
outside diameter : 47 mm
operating temperature range : -40 to 120 ºC
overall width : 12 mm
contact angle : 30 °
cage material : Brass
maximum rpm : 21000 rpm
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : ISO Class 0
bore type : Round
closure type : Open
fillet radius : 0.6 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
