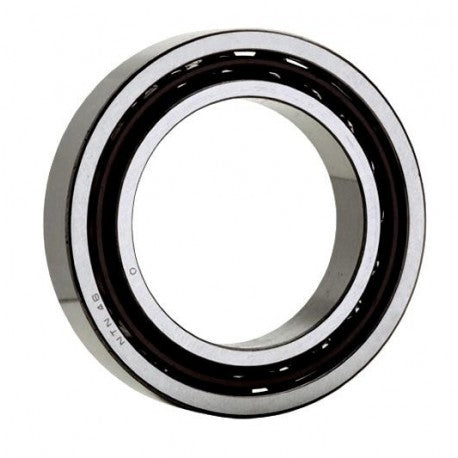

7013 NTN Angular Contact Bearings bore Features & Specifications:
Radial static load capacity : 31500 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 65 mm
outside diameter : 100 mm
overall width : 18 mm
cage material : Brass
contact angle : 30 °
outer ring width : 18 mm
row type & fill slot : Single-Row Non-Fill Slot
maximum rpm : 9000 rpm
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : ISO Class 0
closure type : Open
fillet radius : 1.1 mm
snap ring included : Without Snap Ring
Series : 70
