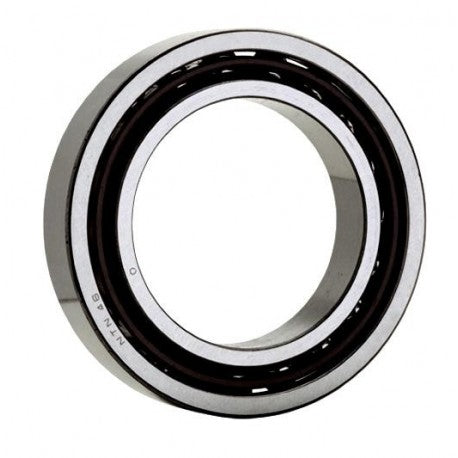

7217BL1G NTN Angular Contact Bearings bore Features & Specifications:
Bore Diameter : 85 mm
Radial static load capacity : 80500 N
outside diameter : 150 mm
operating temperature range : -40 to 120 ºC
overall width : 28 mm
contact angle : 40 °
cage material : Brass
maximum rpm : 5300 rpm
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : ISO Class 0
bore type : Round
closure type : Open
fillet radius : 2 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
