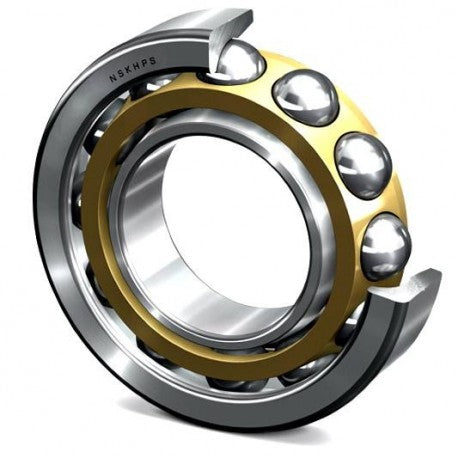

7218 BYG NSK Angular Contact Bearings bore Features & Specifications:
finish/coating : Uncoated
internal clearance : C0
precision rating : ABEC1, P0
bore type : Straight
Series : 7200
closure type : Open
Bore Diameter : 90 mm
radial dynamic load capacity : 24300 lbf
outside diameter : 160 mm
maximum temperature : 250 °F
overall width : 30 mm
cage material : Pressed Brass Cage
contact angle : 40 °
maximum rpm : 4500 rpm
row type & fill slot : Single-Row Non-Fill Slot
