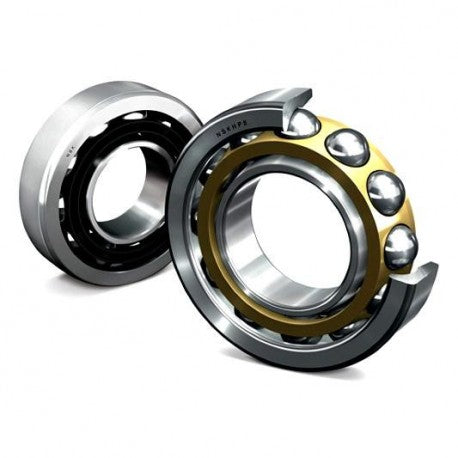

7224BMG NSK Angular Contact Bearings bore Features & Specifications:
Radial static load capacity : 16500 kgf
outside diameter : 215 mm
Bore Diameter : 120 mm
operating temperature range : Maximum of +250 °F
overall width : 40 mm
cage material : Brass
contact angle : 40 °
outer ring width : 40 mm
row type & fill slot : Single-Row Non-Fill Slot
maximum rpm : 3200 RPM
internal clearance : C0
finish/coating : Uncoated
precision rating : ABEC 1 (ISO Class Normal)
closure type : Open
bearing material : Steel (Balls)
fillet radius : 2.1 mm
radial dynamic load capacity : 16900 kgf
Series : 72
