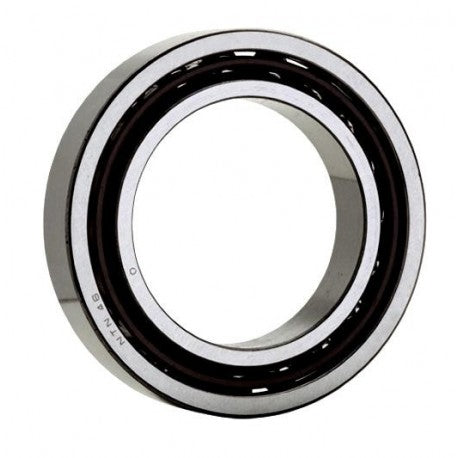

7226BG NTN Angular Contact Bearings bore Features & Specifications:
Radial static load capacity : 180000 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 130 mm
outside diameter : 230 mm
overall width : 40 mm
cage material : Brass
contact angle : 40 °
outer ring width : 40 mm
row type & fill slot : Single-Row Non-Fill Slot
maximum rpm : 3400 rpm
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : ISO Class 0
closure type : Open
fillet radius : 3 mm
snap ring included : Without Snap Ring
Series : 72B
