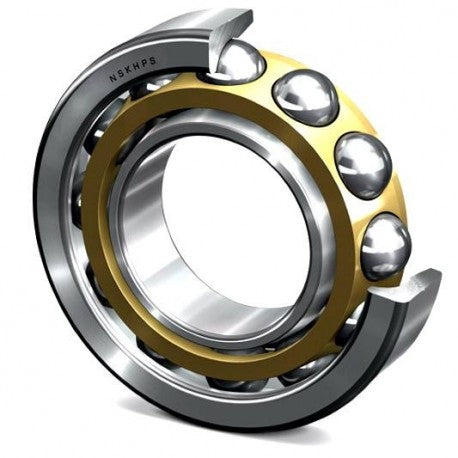

7230 BMPC NSK Angular Contact Bearings bore Features & Specifications:
radial dynamic load capacity : 43800 lbf
maximum temperature : 250 °F
Bore Diameter : 150 mm
outside diameter : 270 mm
overall width : 45 mm
cage material : Machined Brass Cage
contact angle : 40 °
maximum rpm : 2400 rpm
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
internal clearance : C0
precision rating : ABEC3, P6
bore type : Straight
Series : 7200
closure type : Open
