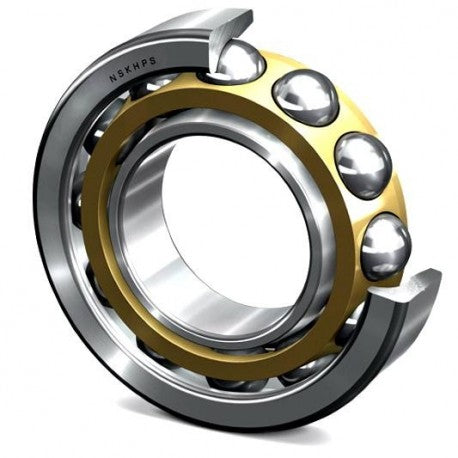

7232 BMG NSK Angular Contact Bearings bore Features & Specifications:
Bore Diameter : 160 mm
radial dynamic load capacity : 44700 lbf
outside diameter : 290 mm
maximum temperature : 250 °F
overall width : 48 mm
contact angle : 40 °
cage material : Machined Brass Cage
maximum rpm : 2200 rpm
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
precision rating : ABEC1, P0
internal clearance : C0
bore type : Straight
Series : 7200
closure type : Open
