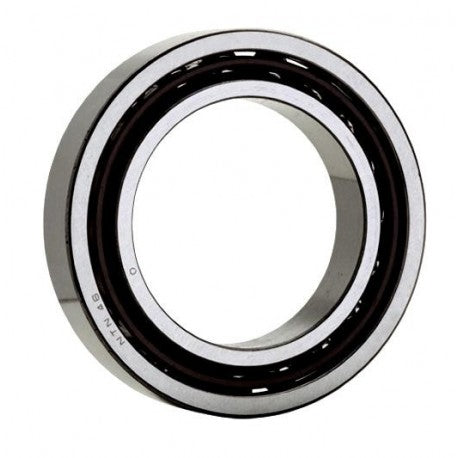

7303B NTN Angular Contact Bearings bore Features & Specifications:
Radial static load capacity : 8000 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 17 mm
outside diameter : 47 mm
overall width : 14 mm
cage material : Steel
contact angle : 40 °
maximum rpm : 20000 rpm
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : ISO Class 0
closure type : Open
fillet radius : 1 mm
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
