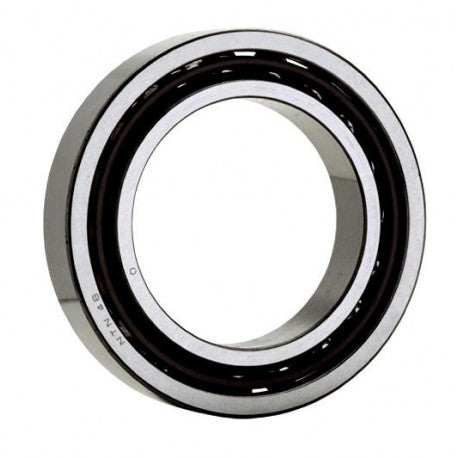

7304BGC3 NTN Angular Contact Bearings bore Features & Specifications:
Radial static load capacity : 9650 N
outside diameter : 52 mm
Bore Diameter : 20 mm
operating temperature range : -40 to 120 ºC
overall width : 15 mm
cage material : Steel
contact angle : 40 °
maximum rpm : 18000 rpm
row type & fill slot : Single-Row Non-Fill Slot
finish/coating : Uncoated
bore type : Round
precision rating : ISO Class 0
fillet radius : 1.1 mm
closure type : Open
snap ring included : Without Snap Ring
bearing material : High Carbon Chrome Steel
