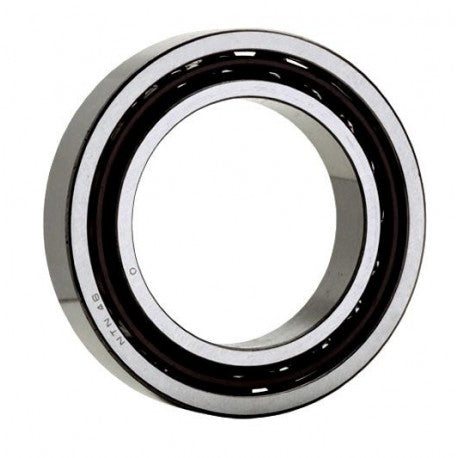

7309B NTN Angular Contact Bearings bore Features & Specifications:
Radial static load capacity : 40000 N
operating temperature range : -40 to 120 ºC
Bore Diameter : 45 mm
outside diameter : 100 mm
overall width : 25 mm
cage material : Steel
contact angle : 40 °
outer ring width : 25 mm
row type & fill slot : Single-Row Non-Fill Slot
maximum rpm : 8900 rpm
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : ISO Class 0
closure type : Open
fillet radius : 1.5 mm
snap ring included : Without Snap Ring
Series : 73B
