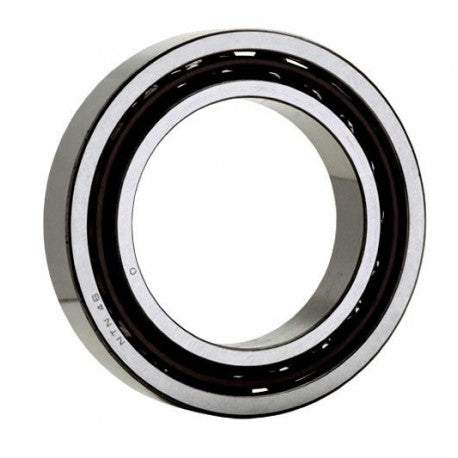

7317BL1G NTN Angular Contact Bearings bore Features & Specifications:
maximum rpm : 4800 rpm
internal clearance : C0
finish/coating : Uncoated
bore type : Round
precision rating : ISO Class 0
closure type : Open
fillet radius : 3 mm
Bore Diameter : 85 mm
Radial static load capacity : 122000 N
outside diameter : 180 mm
operating temperature range : -40 to 120 ºC
overall width : 41 mm
cage material : Steel
contact angle : 40 °
outer ring width : 41 mm
row type & fill slot : Single-Row Non-Fill Slot
snap ring included : Without Snap Ring
Series : 73B
