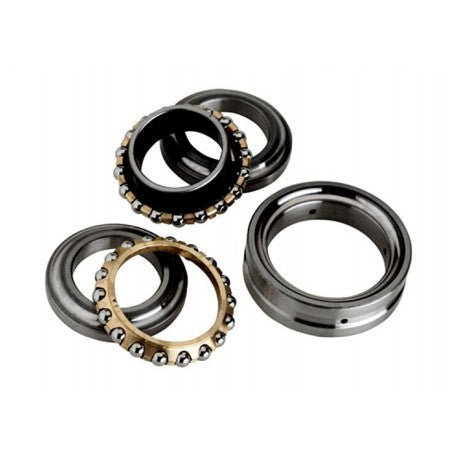

742026/GNP4 NTN Ball Thrust Bearings bore Features & Specifications:
dynamic load capacity : 125000 N
outside diameter : 200 mm
Bore Diameter : 130 mm
operating temperature range : -40 to 120 ºC
overall width : 69 mm
maximum rpm : 3400 rpm
thrust bearing type : Double-Direction
bearing material : High Carbon Chrome Steel
outside diameter design : Straight
cage material : Brass
separable or banded : Separable
fillet radius : 2 mm
precision rating : ISO Class 4
static load capacity : 315000 N
