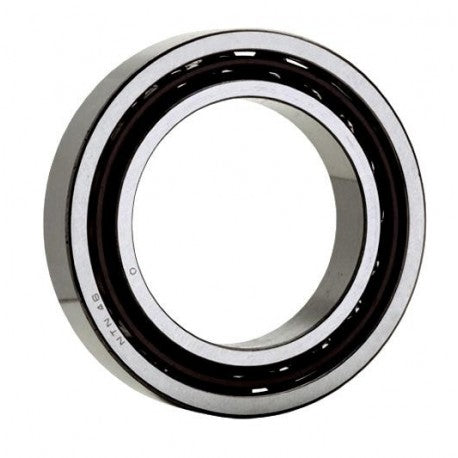

7903T2G/GMP4 NTN Angular Contact Bearings bore Features & Specifications:
Bore Diameter : 17 mm
radial dynamic load capacity : 4900 N
outside diameter : 30 mm
Radial static load capacity : 2950 N
overall width : 7 mm
contact angle : 30 °
operating temperature range : -40 to 120 ºC
cage material : Nylon
row type & fill slot : Single-Row Non-Fill Slot
maximum rpm : 49800 rpm
finish/coating : Uncoated
bore type : Round
closure type : Open
precision rating : ISO Class 4
snap ring included : Without Snap Ring
fillet radius : 0.3 mm
bearing material : High Carbon Chrome Steel
