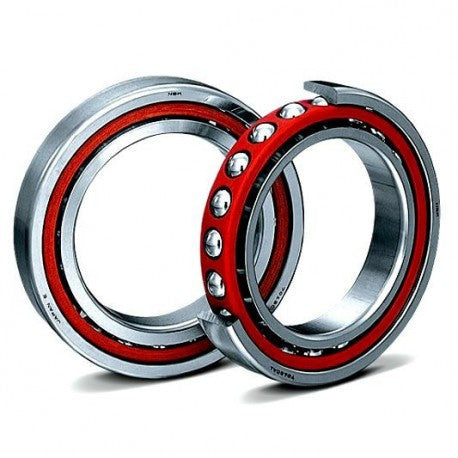

7906CTRDULP4Y NSK Spindle & Precision Machine Tool Features & Specifications:
radial dynamic load capacity : 845 kgf
Radial static load capacity : 640 kgf
Bore Diameter : 30 mm
outside diameter : 47 mm
overall width : 9 mm
maximum rpm : 28000 RPM
contact angle : 15 °
cage material : Synthetic Resin
internal clearance : C0
finish/coating : Uncoated
ball screw application : Not for Ball Screws
outer ring width : 9 mm
closure type : Single Seal
fillet radius : 0.3 mm
precision rating : ABEC 7 (ISO Class 4)
Series : 79
