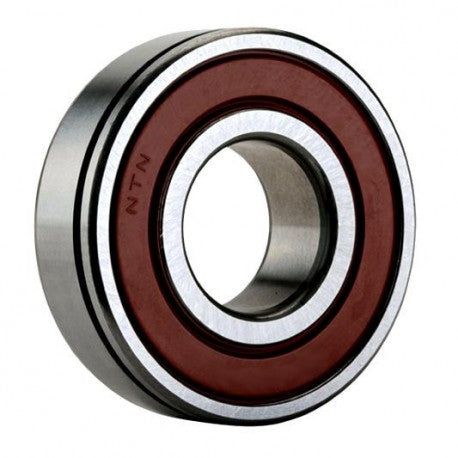

8016 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
inner ring width : 12.192 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 11 mm
snap ring included : Without Snap Ring
maximum rpm (grease) : 15000 rpm
internal clearance : CN
fillet radius : 0.6 mm
Bore Diameter : 16 mm
precision rating : ISO Class 0
outside diameter : 35 mm
finish/coating : Uncoated
overall width : 12.7 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : Single Seal
operating temperature range : -40 to 120 ºC
Series : 80
