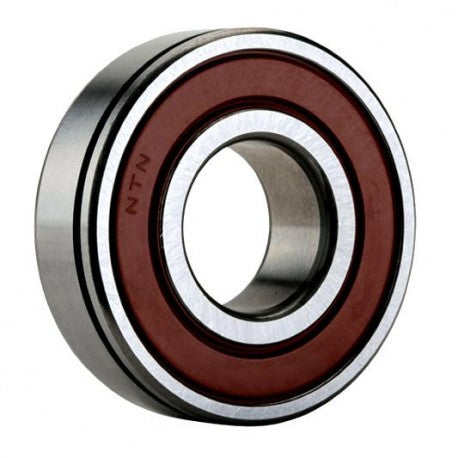

8500 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
static load capacity : 80000 N
precision rating : ISO Class 0
Bore Diameter : 10 mm
outside diameter : 30 mm
overall width : 12.7 mm
finish/coating : Uncoated
bore type : Round
bearing material : High Carbon Chrome Steel
closure type : Single Seal
cage material : Steel
row type & fill slot : Single Row Non-Fill Slot
inner ring width : 12.192 mm
snap ring included : Without Snap Ring
outer ring width : 9 mm
internal clearance : CN
maximum rpm (grease) : 18000 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 0.6 mm
