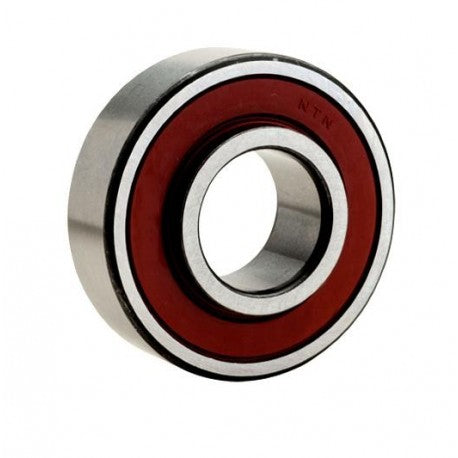

87505 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
precision rating : ISO Class 0
finish/coating : Uncoated
Bore Diameter : 25 mm
outside diameter : 52 mm
overall width : 15.875 mm
bearing material : High Carbon Chrome Steel
bore type : Round
cage material : Steel
closure type : One Seal/One Shield
inner ring width : 15.24 mm
row type & fill slot : Single Row Non-Fill Slot
outer ring width : 15 mm
snap ring included : Without Snap Ring
maximum rpm (grease) : 8900 rpm
internal clearance : CN
fillet radius : 1 mm
operating temperature range : -40 to 120 ºC
Series : 87
