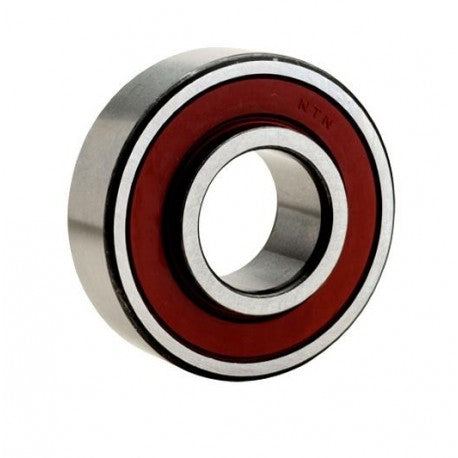

87506 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 30 mm
precision rating : ISO Class 0
outside diameter : 62 mm
finish/coating : Uncoated
overall width : 20 mm
bore type : Round
bearing material : High Carbon Chrome Steel
cage material : Steel
closure type : One Seal/One Shield
inner ring width : 19 mm
outer ring width : 16 mm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
maximum rpm (grease) : 7300 rpm
internal clearance : CN
fillet radius : 1 mm
operating temperature range : -40 to 120 ºC
Series : 87
