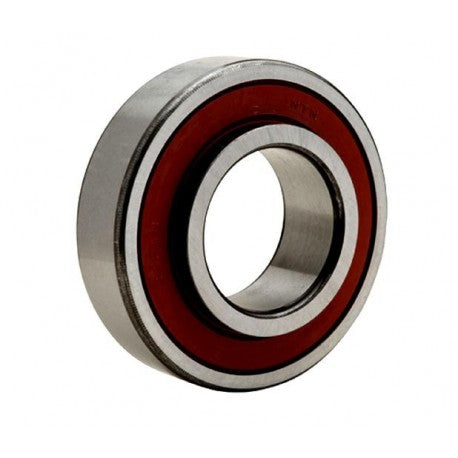

88501 NTN Radial/Deep Groove Ball Bearings Features & Specifications:
Bore Diameter : 12 mm
static load capacity : 2740 N
outside diameter : 32 mm
precision rating : ISO Class 0
overall width : 15.4 mm
bore type : Round
finish/coating : Uncoated
bearing material : High Carbon Chrome Steel
closure type : Double Sealed
cage material : Steel
inner ring width : 15.40 mm
row type & fill slot : Single Row Non-Fill Slot
snap ring included : Without Snap Ring
outer ring width : 10 mm
internal clearance : CN
maximum rpm (grease) : 16000 rpm
operating temperature range : -40 to 120 ºC
fillet radius : 0.6 mm
