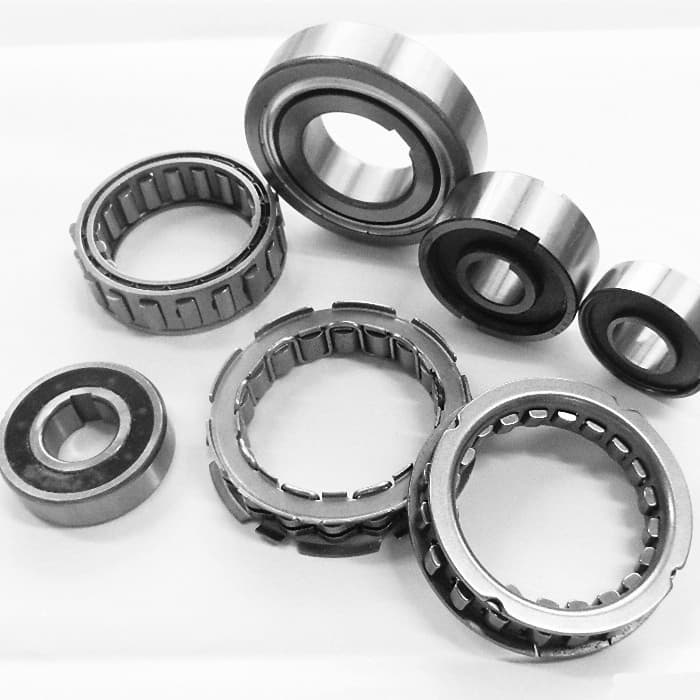

AS12 is a one-way clutch,that is used
for Overrunning, Indexing and Backstopping, this type is
non-bearing supported, this is exactly the same size as
any 6201 ball bearing, you will need one of the 6201
beairngs to support it, One way Bearing Sprag/Clutch
Freewheel and also called as Backstops. AS12 is used in
any applications that requires one direction rotation,
such as mining, hydraulic, textile, printing and washing
machines, conveyor systems that carry products to a
higher level should not be reversed because of gravity
during any power shortage.
-
Item: AS12 Clutch
-
Type: One Way Clutch
-
Applications: Overrunning,
Indexing, Backstopping
-
Dimensions: 12mm x 32mm x
10mm/metric
-
Inner Diameter: 12mm
-
Outer Diameter: 10mm
-
Width: 28mm
-
Torque: 10 TKN
-
Max Torque: 25 TKN
-
Inner Race Overrun: 3,200
RPM
-
Outer Race Overrun: 4,800
RPM
-
Quantity: One Clutch
|
Dimension
(mm)
|
|
d
|
D
|
D1
|
L
|
s
|
e
|
f
|
|
12
|
32
|
28
|
10
|
1.3
|
0.6
|
0.6
|
|
